U-Bolt Kit for 1310 U-Joint

Allstar Performance 1310 Series U-Joint U-Bolt Kit

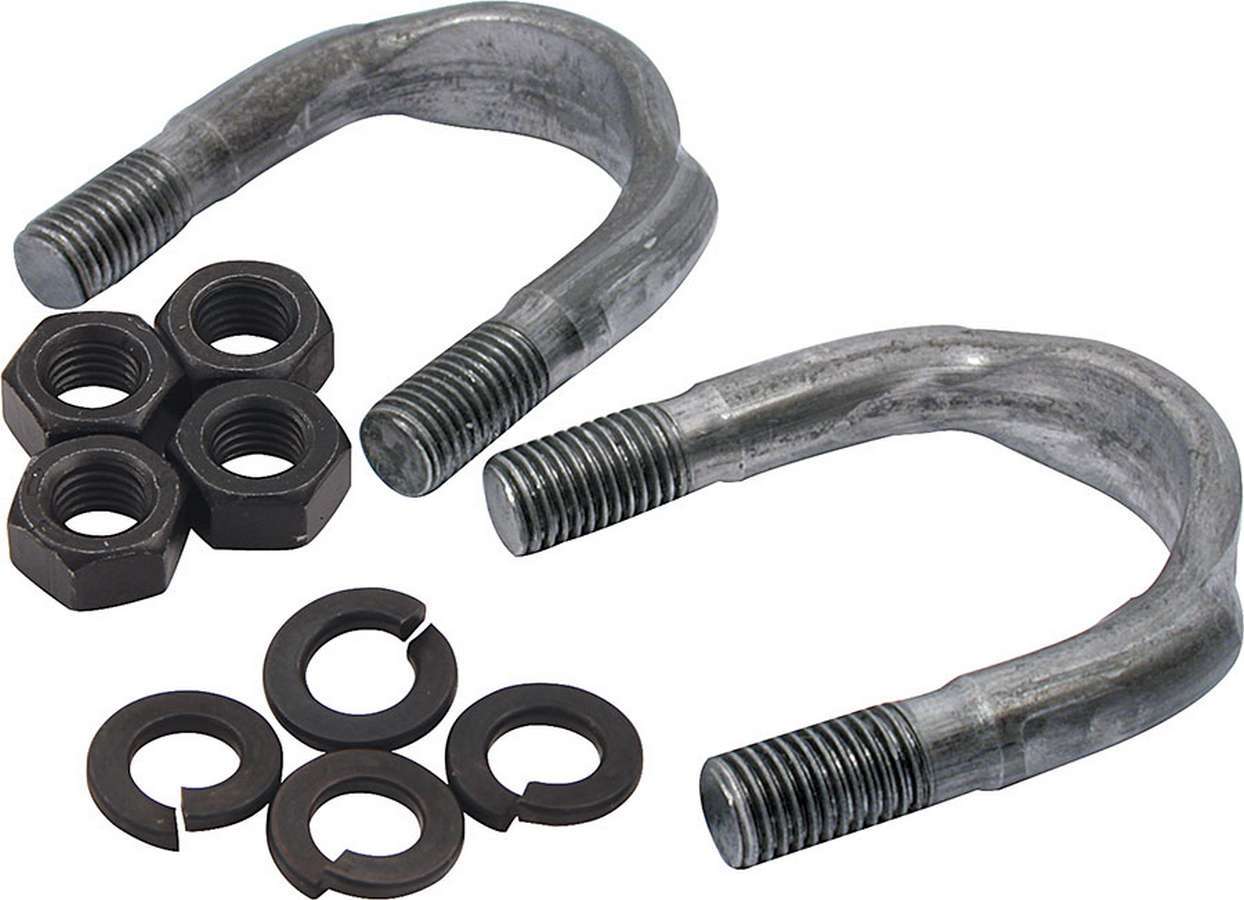

The Allstar Performance ALL69015 is a complete U-bolt hardware kit for securing a 1310-series universal joint to a compatible pinion yoke. The kit includes two steel U-bolts along with nuts and lock washers, providing the hardware needed for one yoke.

Allstar specifies the standard kit for 1310/1330 applications with 1-1/16-inch bearing caps, 5/16-24 threads, 1-3/4-inch U-bolt length, and 1.400-inch stud center-to-center spacing.

Additional Info

• Brand: Allstar Performance
• Part Number: ALL69015
• SKU: DNLF_ALL69015
• U-Joint Series: 1310 / 1330
• Bearing Cap Diameter: 1-1/16 in
• U-Bolt Length: 1-3/4 in
• Thread: 5/16-24
• Stud Center-to-Center: 1.400 in
• Material: Steel
• Finish: Natural
• Included: 2 U-bolts, 4 nuts, 4 lock washers
• Application: One compatible yoke

Fitment Note: Verify U-joint series, bearing-cap diameter, yoke dimensions, thread size, and U-bolt spacing before installation.
