Alum Mini P/S Pump with Alum Reservoir

Jones Racing Products GM Type 2 Power Steering Pump – 1100 PSI

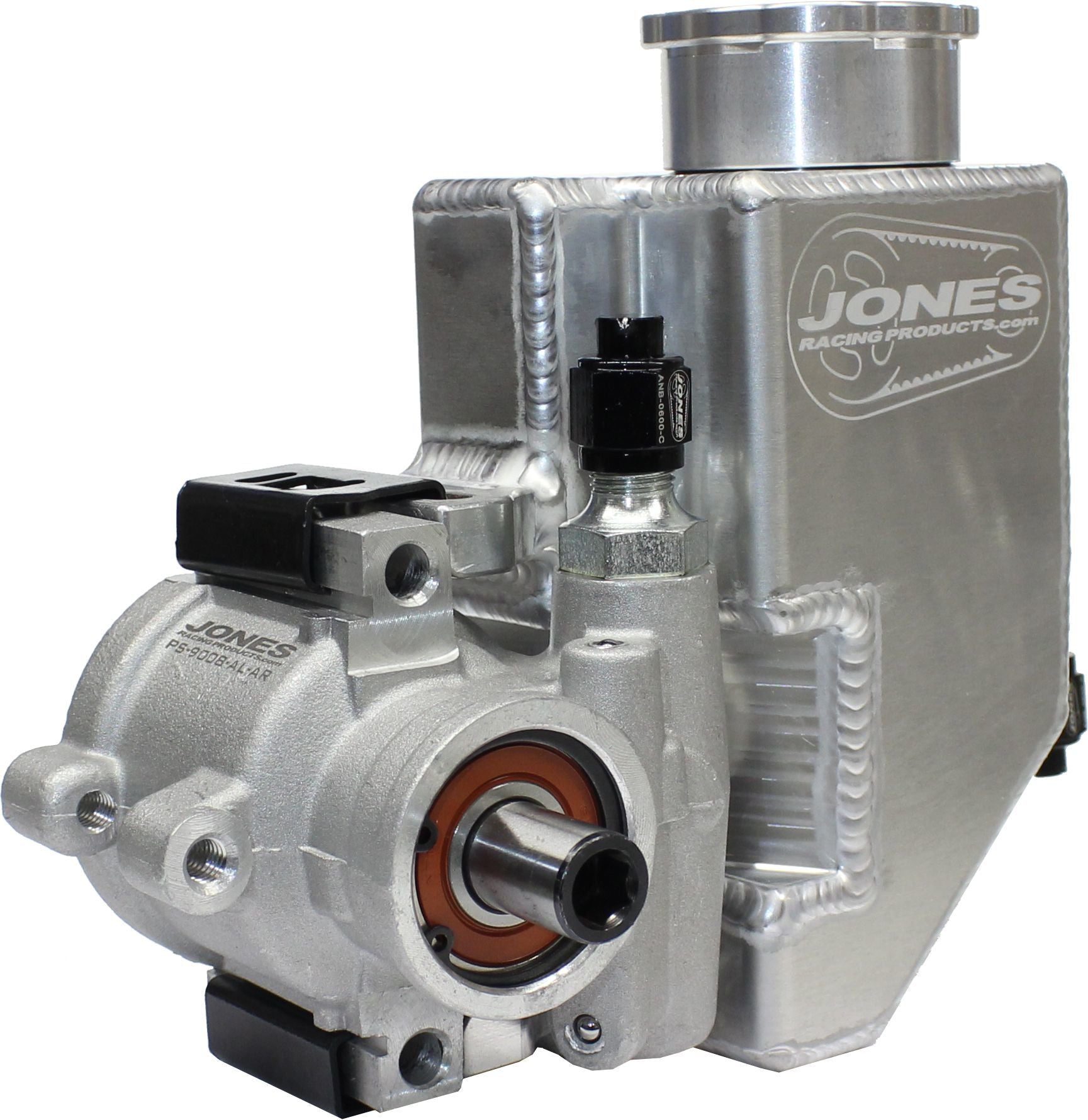

The Jones Racing Products PS-9008-AL-AR is a GM Type 2 power steering pump built for performance and racing applications. It uses an aluminum housing with an integrated aluminum reservoir and is rated at 1100 psi. The pump uses -6 AN connections and is supplied with straight, 45-degree, and 90-degree -6 AN fittings for installation flexibility.

Additional Info

• Brand: Jones Racing Products
• Part Number: PS-9008-AL-AR
• SKU: GCDN_PS-9008-AL-AR
• Pump Type: GM Type 2 / Saginaw-style
• Pressure: 1100 psi
• Material: Aluminum
• Finish: Natural
• Reservoir: Integrated aluminum, 18 oz
• Inlet: -6 AN
• Outlet: -6 AN
• Included Fittings: Straight, 45-degree, and 90-degree -6 AN fittings
• Pulley Attachment: Press-fit
• Application: Universal high-performance and racing steering systems
• Sold: Individually

Fitment Note: Verify bracket, pulley, belt alignment, shaft configuration, fluid specification, and required steering pressure/flow for the vehicle before installation.
