Radiator Module Chevy Closed Triple Pass

Radiator and Fan - 28.875 in W x 18 in H x 2 in D - Triple Pass - Passenger Side Inlet - Driver Side Outlet - Aluminum - Natural - Chevy - Super Late Model - Kit

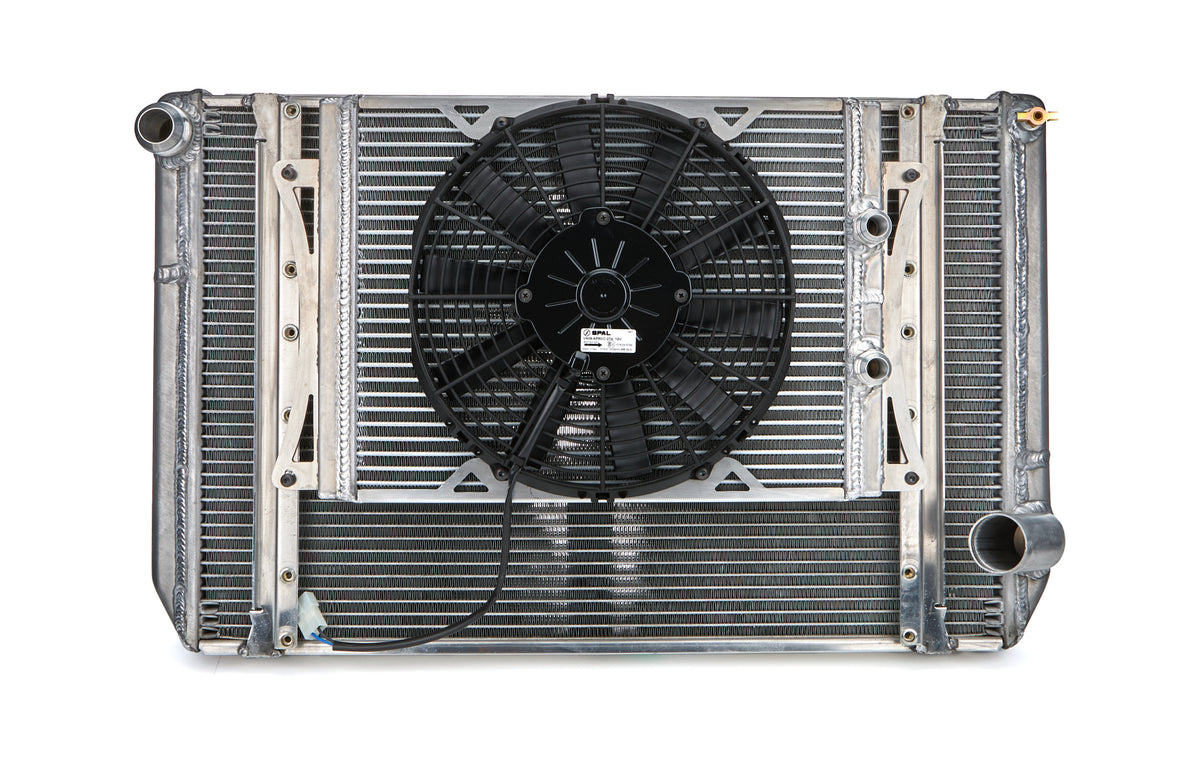

Fluidyne MGM.SLM.CLOSED.TP is a legacy-generation triple-pass, three-row aluminum radiator module designed for Chevy/GM-oriented Super Late Model racing cooling layouts. The module integrates a radiator, oil cooler and electric fan for combined coolant and engine-oil temperature management.

Features & Specifications

• Manufacturer part number: MGM.SLM.CLOSED.TP
• Triple-pass, three-row aluminum radiator; natural finish
• Radiator dimensions: 28.875 in wide x 18 in high x 2 in deep (radiator body)
• Passenger-side radiator inlet; driver-side outlet
• Closed-system configuration
• Radiator and fan module kit, not radiator-only
• Fluidyne legacy SLM design uses approximately 1/2-inch tubes and high-density fins

Additional Info

For Chevy/GM-oriented Super Late Model cooling layouts using a closed cooling system. Confirm inlet/outlet orientation, hose and expansion-tank plumbing, chassis mounting and clearance for the attached oil cooler and fan. The 2-inch depth applies to the radiator body only. V2 Fluidyne modules have different dimensions and inlet arrangements and should not be assumed to be direct plumbing replacements.
